Транзисторные оптроны с входным сигналом переменного тока

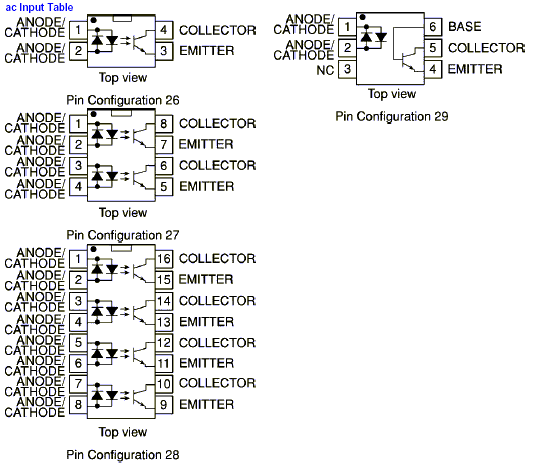

Features Package Pin Approvals Manufacturer Manufacturers Emitter   Detector   Coupled Characteristics Isolation Operating
    Config.     Part No. V F (typ.) I F (max.) V CEO (max.) I C (max.) CTR t r (typ.) t f (typ.) voltage temperature
    Diagram       V mA V mA % m s m s V a.c. °C
High isolation, hFE=500 6-Pin DIP 29   Isocom Compts H11AA1 1.15 60 30 150       7500 -55 to +100
High isolation, SMD mini-flat package SMD 4-Pin DIP 26 UL E64380 Sharp PC35NT 1.2 50 35 50 20-400 4 3 3750 -30 to +100
SMD half pitch mini-flat package Quad, SMD 16-Pin DIP 28 UL E64380 Sharp PC3064Q 1.2 50 35 50 20-400 4 3 2500 -30 to +100
High isolation, High input current 6-Pin DIP 29 UL E64380 Sharp PC733H 1.4 150 35 80 20-80 4 5 5000 -25 to +100
High isolation 4-Pin DIP 26 UL E64380 Sharp PC814 1.2 50 35 50 20-300 4 3 5000 -30 to +100
High isolation Dual, 8-Pin DIP 27 UL E64380 Sharp PC824 1.2 50 35 50 20-300 4 3 5000 -30 to +100
High isolation Quad, 16-Pin DIP 28 UL E64380 Sharp PC844 1.2 50 35 50 20-300 4 3 5000 -30 to +100
High isolation, High VCEO, High CTR, High speed SMD 4-Pin DIP 26 UL E52744 Siemens SFH6206-2 1.45 60 70 50 63-200 2 2 5300 -55 to +100
High isolation High VCEO, Low coupling capacitance (7pF typ.) SMD 4-Pin DIP 26   Siemens SFH6286-3 1.1 50 55 50 100-320 3.5 5 5300 -55 to +100
High isolation, High VCEO SMD 4-Pin DIP 26 UL E67349 Toshiba TLP126 1.15 50 80 50 10040-80 83 82 3750 -55 to +100
High VCEO, SMD mini-flat package SMD 4-Pin DIP 26   Toshiba TLP280 1.15 50 80 50 50-600 2 3 2500 -55 to +100
High VCEO, SMD half pitch mini-flat package Quad, SMD 16-Pin DIP 28   Toshiba TLP280-4 1.15 50 80 50 50-600 2 3 2500 -55 to +100
High isolation, High VCEO 4-Pin DIP 26 UL E67349 Toshiba TLP620 1.15 60 55 50 50-600 2 3 5000 -25 to +85
High isolation, High VCEO Dual, 8-Pin DIP 27 UL E67349 Toshiba TLP620-2 1.15 50 55 50 50-600 2 3 5000 -25 to +85
High isolation, High VCEO Quad, 16-Pin DIP 28 UL E67349 Toshiba TLP620-4 1.15 50 55 50 50-600 2 3 5000 -25 to +85
High isolation, High VCEO, Low input current 4-Pin DIP 26 UL E67349 Toshiba TLP626 1.15 60 55 50 100-1200 8 8 5000 -55 to +100
